23.8 Inch High Brightness 2000nits TFT LCD Display LVDS Optional HDMI Board kits
The ZH238PIFHD003-02A is a premium High Brightness LCD Display engineered to deliver exceptional visibility and performance in bright ambient light conditions. With a 23.8-inch screen, Full HD 1920x1080 resolution, and a remarkable brightness of 2000 cd/m², this display ensures outstanding readability—even under direct sunlight. Designed for industrial, commercial, and outdoor environments, this High Brightness LCD Display features IPS technology, anti-glare coating, and optional touch functionality, making it a versatile solution for professional-grade applications.
Key Features:
Screen Size: 23.8 inches – A large format display ideal for dashboards, kiosks, and control systems.
Resolution: 1920x1080 (Full HD) – Delivers crisp, high-definition content with vibrant clarity.
Brightness: 2000 cd/m² (Max) – Ultra-high brightness for optimal visibility in sunlight or high-luminance environments.
Color Depth: 8-bit True Color – Capable of displaying 16.7 million colors for rich and detailed visuals.
Interface: LVDS, 30-Pin Connector – Stable and widely compatible signal interface for easy integration.
Outline Dimension: 555.8(W) x 325.3(H) x 11.7(T) mm – Slim profile for seamless installation into enclosures or custom housings.
Touch Panel: Optional – Customizable touch interface to meet project-specific requirements.
HDMI Board: Optional – Enables easy plug-and-play functionality with multimedia or PC-based systems.
Application:
Outdoor Commercial Digital Display
Outdoor Display Terminals for Control system
Outdoor Landscape and Portrait Signage Display
Outdoor Rail Transit
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| item | ZH238PIFHD003-02A |
| Screen Size | 23.8 Inch |
| Resolution | 1920x1080 |
| Brightness | 2000 cd/m²(Typ.) |
| Interface | LVDS, 30pins Connector |
| Display Mode | IPS,Normally Black |
| Surface Treatment | 3H,Anti-Glare |
| Colors | 8bits True |
| Active Aera | 527.04(W)x296.46(H) mm |
| Outline Dimension | 555.8(W) x325.3(H)x11.7(T) mm |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
| HDMI Board | Optional HDMI Board |

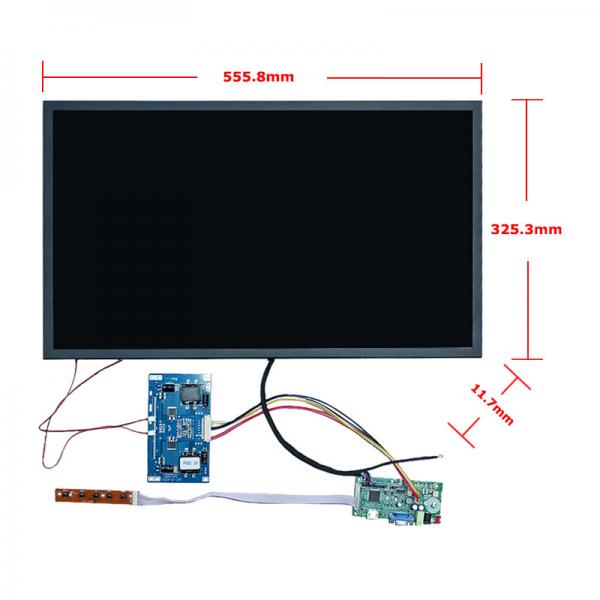

Product Drawing
Why Choose ZhanHui High Brightness LCD Display?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
