10.1-inch HD TFT LCD Display 1280x800 IPS with luminance 350nits Optional Touch Panel
10.1 Inch HD TFT LCD Display with High-Resolution:
1280 × 800 pixels in RGB vertical stripe format, rendering 16.7 million colors for precise and vibrant visuals.
10.1-inch HD TFT LCD Display with Wide Operating Range:
Functions stably between 0°C to +55°C, with storage tolerance from -20°C to +60°C, supporting use in harsh environments.
IPS Panel 10.1 inch display with luminance 350nits
75% uniformity, ensuring clear readability in both indoor and semi-outdoor lighting.
Low Voltage Operation:
Efficient 3.3V logic supply reduces power consumption, ideal for portable or battery-operated systems.
Slim & Lightweight:
Compact mechanical dimensions (229.26mm × 148.9mm × 2.5mm) optimize space utilization for embedded design.
LVDS Interface:
Ensures reliable high-speed data transmission, supporting precise color rendering and smooth graphics performance.
10.1 Inch HD TFT LCD Display module with Optional touch screen
We support customzied accroding to your requirement of the touch screen.
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| Item Number | ZH101HH058- 03 |
| Screen Size | 10.1 Inch |
| Resolution | 1280x800 |
| Brightness | 350 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 40pins Connector |
| Active Aera | 216.96(W) x135.6(H) mm |
| Outline Dimension | 229.26(W) x148.9(H)x2.5(T) mm |
| Backlight | 30-Chip White LED, 200mA 10.2V |
| Operating Temperature | 0℃~+55℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Panel |

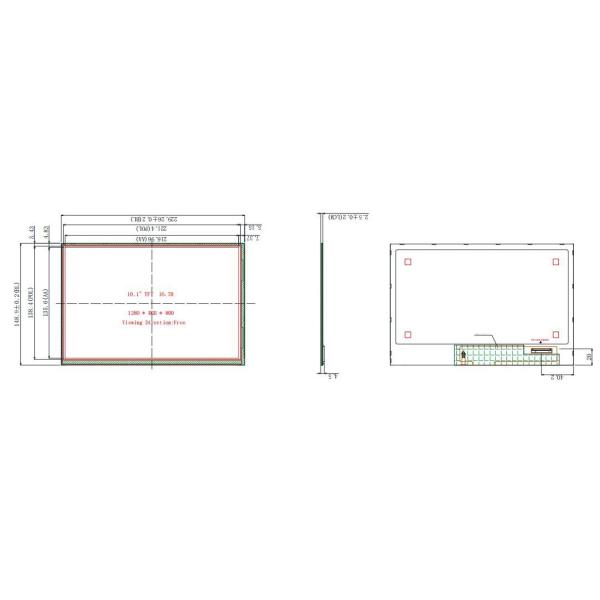

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
